Electric Wheelchair Model V
The Vive Electric Wheelchair Model V is a power wheelchair built around a plush captain's seat that swivels for easier transfers. The 20 x 18-inch seat adjusts in height and recline, and the footplate and armrests adjust too, to accommodate most adults comfortably.
- Ships across the lower 48
- Service and repair in Georgia
- In business since 1990
- 300 lb weight capacity
- Up to 15 miles per charge
- Swiveling captain's seat
- 25" turning radius
About the Electric Wheelchair Model V

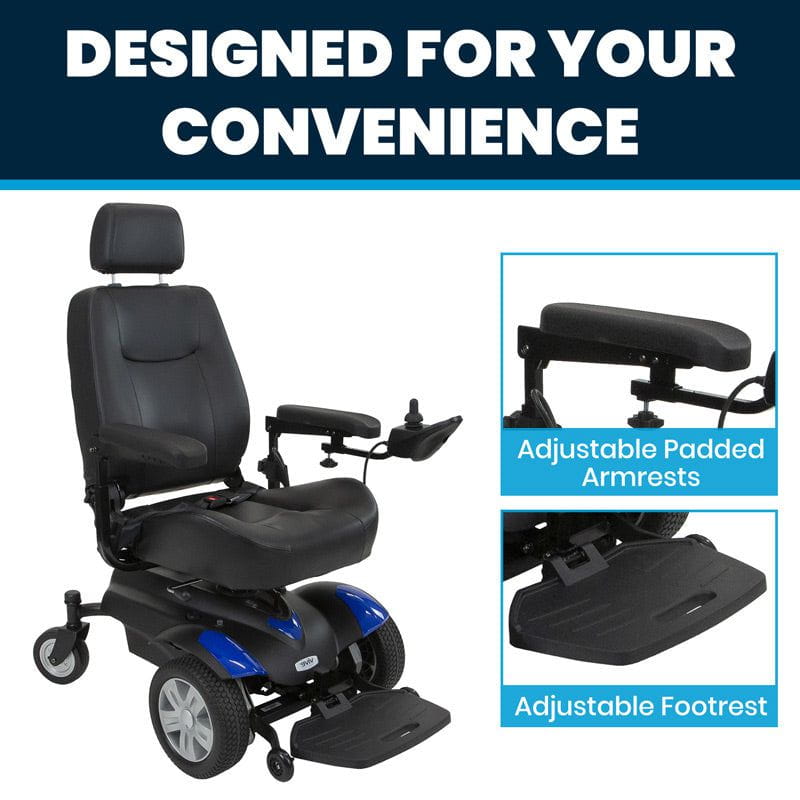

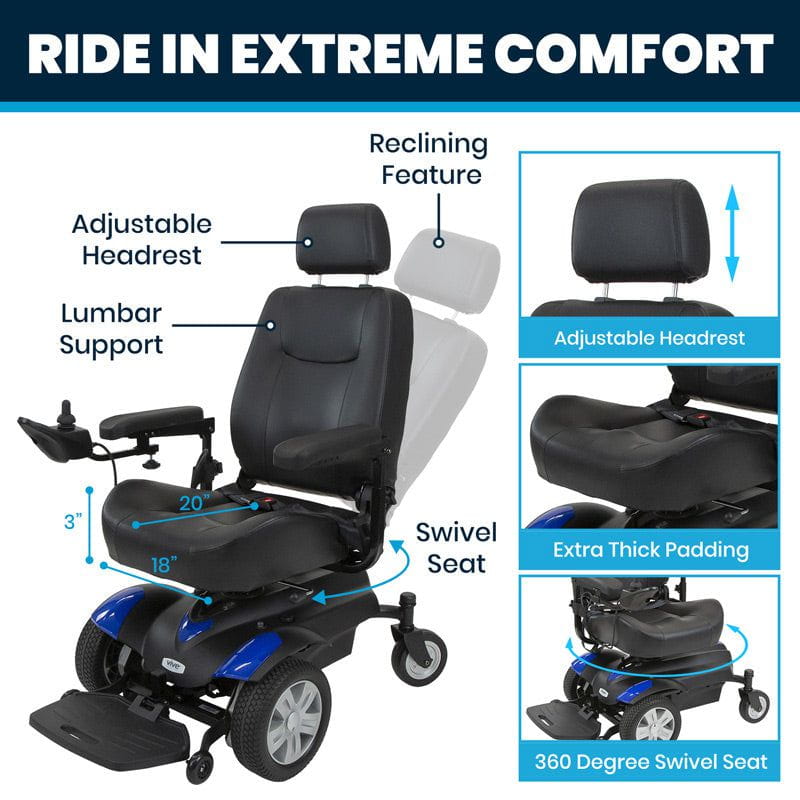

The Vive Electric Wheelchair Model V is a power wheelchair built around a plush captain's seat that swivels for easier transfers. The 20 x 18-inch seat adjusts in height and recline, and the footplate and armrests adjust too, to accommodate most adults comfortably.

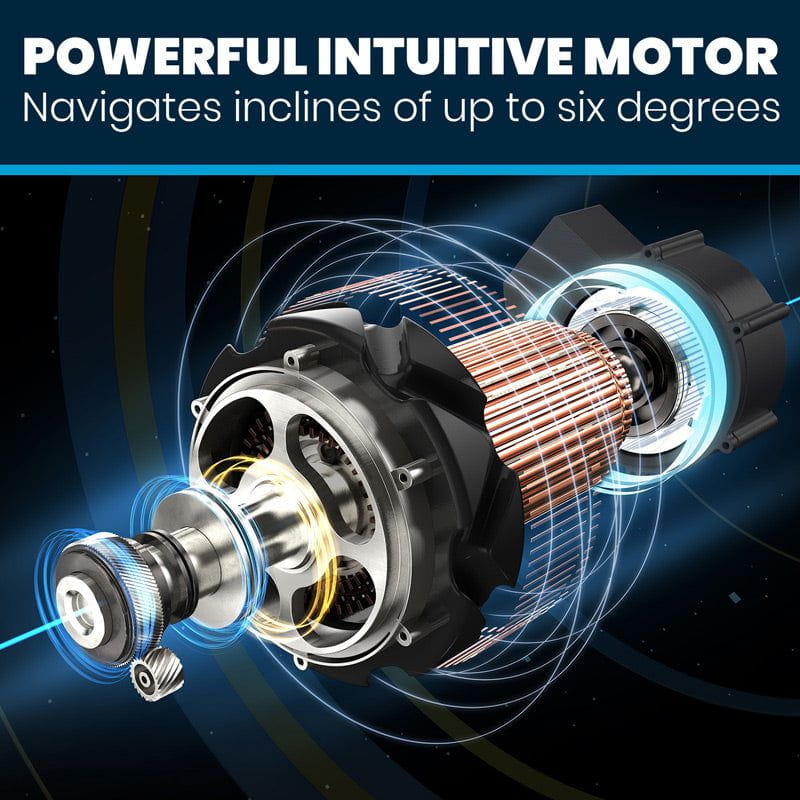

Dual 200W motors drive it at up to 4 mph, and two 12V 35AH batteries give up to 15 miles per charge. The batteries charge onboard through the joystick port with the included 3-pin cable.

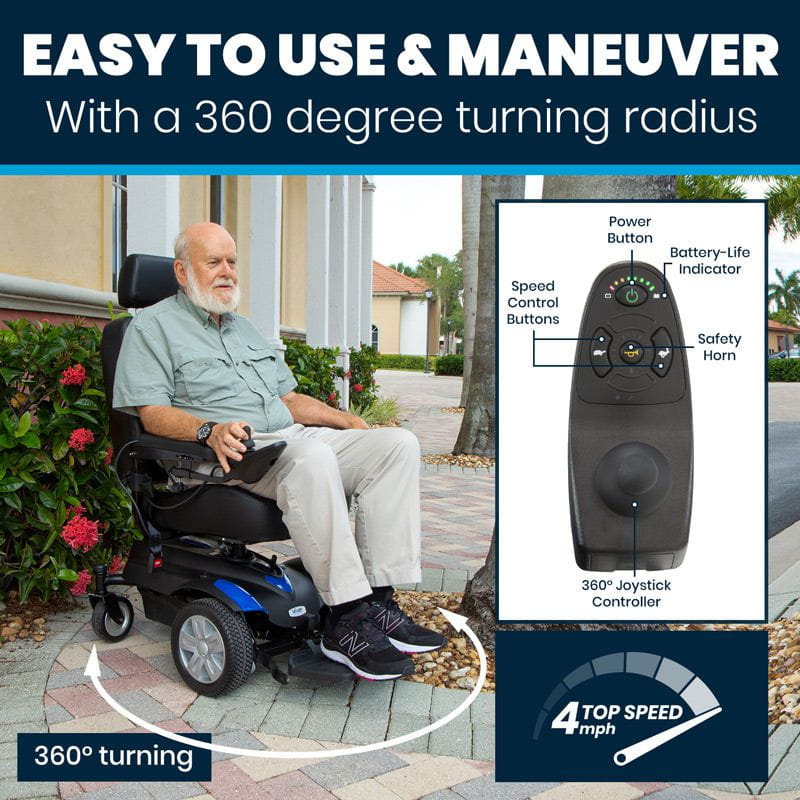

A 360-degree joystick mounts on either armrest, with simple speed controls and dual braking. A 25-inch turning radius helps in small, tight and narrow spaces. If the battery dies while you are out, freewheel mode disengages the motors so a helper can push the chair by hand.
It has solid, inflate-free tires and 2.5 inches of ground clearance, and Vive calls it suitable for some outdoor surfaces such as concrete and pavement. Vive notes it is not suited to loose gravel or inclement weather. The frame supports up to 300 lbs, and the chair weighs 151 lbs with batteries.
It arrives partially assembled, and Custom Mobility ships it across the lower 48.
What Our Customers Say
Google reviews of our company and our technicians, not of this one product.
Key specs
- Weight capacity
- 300 lbs
- Top speed
- 4 mph
- Maximum drive range per charge
- 15 miles
- Total weight
- 151 lbs (with batteries)
- Front tires
- 6.2" (solid, inflate-free)
- Rear tires
- 10" (solid, inflate-free)
- Turning radius
- 25"
- Length
- 40"
- Width
- 24.75"
- Height
- 44"
- Ground clearance
- 2.5"
- Seat dimensions
- 20" x 18"
- Seat back height
- 18.5"
- Batteries
- 12V 35AH (dual)
- Battery charger
- On-board charger, 2A
- Motor
- 200W 3900 RPM (dual motors)
Specifications as published by Vive Health: maker's spec sheet.
What's included
- Electric Wheelchair Model V
- Two rechargeable 12V 35AH batteries
- 3-pin charging cable
- Joystick controller
- User manual
Warranty
The maker's warranty for this model.
- Frame: 5 years
- Joysticks: 1 year
- Electrical, batteries, horn and controller: 6 months
- Handles and charger: 90 days
- Battery case: 60 days
- Register your product with Vive within 30 days of purchase; warranty claims are handled through Custom Mobility.
Repairs and replacements under warranty are processed in coordination with the manufacturer.
